2626999-000-440

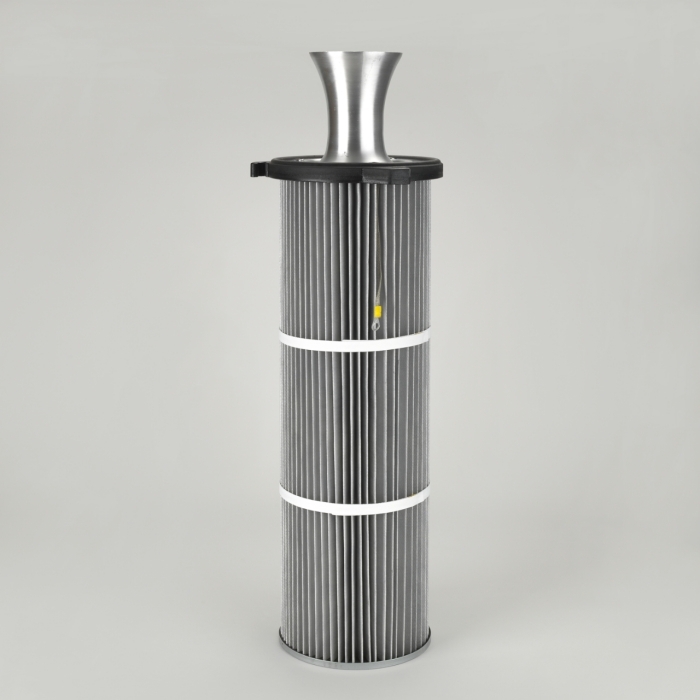

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Polyester Spunbond Anti-Static, 145 mm outer diameter x 1515 mm long including top gasket; Special features: With venturi, Dirty Air Plenum and Clean Air Plenum installation, earthed for TAMA and other brands of cartridge collectors

Diameter (mm)	145
Inner Diameter (mm)	94
Length (mm)	1515
Media	Polyester Anti-Static
Media Weight (g/m²)	270
Area (m²)	5.61
Unit Family	Quick Fix 3
Pitch Diameter (mm)	180
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above and Below Top End Cap
Pleath Height (mm)	25
Number of Pleats	75
Max. Temp (°C)	60
Volume (m³)	0.09216
Type	Quick Fix 3
